Save space in your electrical control panel

While keeping an optimal temperature in the control cabinet

Control panel design is already challenging enough without space restrictions.

So we developed a design and technology that enables you to mount the components directly side-by-side in the control cabinet, while maintaining ambient panel temperatures up to 55°C.

That gives you more space to play with, letting you increase functionality in the same size electrical control panel.

Slim control panel component designs for space optimisation

Careful design results in cooler, more robust systems that give you more room to add the functionality you need. Enhanced functionality, re-designed housing materials and multi-circuit functions to reduce the number of powered devices, combine for greater space saving.

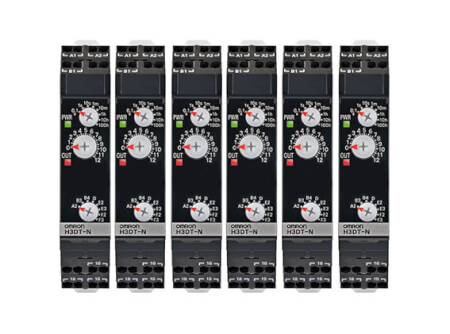

  • Up to 60% lower power consumption with H3DT Solid-state Timer (active power) with side-by-side mounting possible
  • Enhanced built-in functionality frees up panel space
  • Overall space saving and improved product life expectancy
  • Industry-leading compact designs

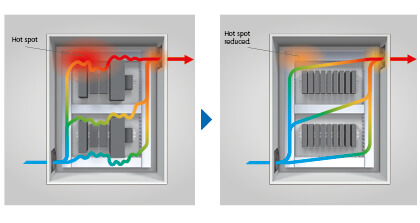

Improved air flow in your electrical panel

The use of components with a uniform height ensures unobstructed airflow in the control cabinet. As a result, heat is easily dissipated.

Reducing the temperature inside a control panel:

  • increases product reliability
  • decreases failure rates
  • prolongs product life expectancy

Make your control panels up to 20% smaller

Moving to smaller, standard component heights across all factory automation (FA) control devices allows for standardised wiring ducts and component placement, optimising space.

Our complete new range of compact in-panel components includes:

  • electromechanical and solid state relays
  • I/O relay terminals
  • terminal blocks
  • temperature controllers
  • timers
  • measuring and monitoring relays
  • power monitors and (uninterruptible) power supplies

The width of some of these products is as small as 3.5mm.

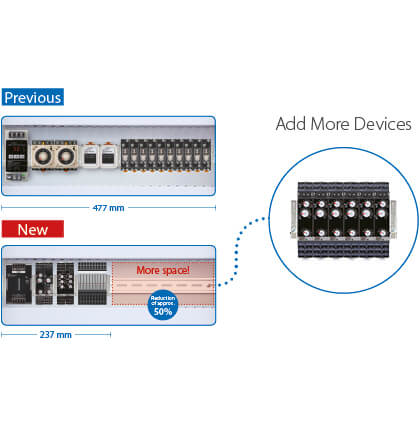

If you combine with on-panel components that offer reduced depth, you can make your control panel up to 20% smaller when compared to conventional panel components. Side-by-side mounting is possible for each model, as they all consume less power and therefore generate less heat.

These products also offer features such as LED status indicators, simple front wiring and Push-In Plus terminals, all helping you to optimise panel layouts without impacting on issues such as usability or maintenance.

Redesigned power supplies with less size and weight, and longer product

We have developed innovative, compact uninterruptible power supplies (UPS) that use lithium-ion batteries in order to minimise component size and weight, as well as increasing product life.

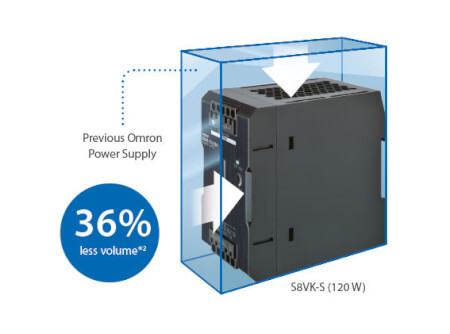

Standard switch mode industrial power supplies have been redesigned to take up as much as 36% less volume than previous designs, offering the smallest footprint on the market.

We also have a new push-in technology that reduces the time needed for control panel building by 60%.

We also have a new push-in technology that reduces the time needed for control panel building by 60%.

It leaves both your hands free while working in the control cabinet.

Check out our videos!
