Power Supplies

Filter by

Type
Output voltage
Products
11 products found
export to excel
Product
S8VK-C S8VK-T S8VK-G S8VK-WB S8VK-S S8FS-C S8VK-X S8FS-G S8VK-WA S8AS S8VS-A/B
s8vk-c prod
s8vk-t prod
s8vk-g12024 prod
s8vk w main product image prod
s8vk s group image 400x400 prod
s8fs-c035 prod
s8vk-x group prod
s8fs-g prod
s8vk-wa20224-spi web prod
s8as 240w prod
s8vs-24024a prod
Terminals
Screw Screw Screw Push-in plus Push-in plus Screw Push-in plus Screw Push-in plus Screw Screw
Rated input voltage
100 to 240 VAC 3x 320 to 576 VAC 100 to 240 VAC 90 to 350 VDC 3x 320 to 576 VAC 100 to 240 VAC 90 to 350 VDC 100 to 240 VAC 100 to 240 VAC 90 to 350 VDC 100 to 240 VAC 200 to 240 VAC 100 to 240 VAC 100 to 240 VAC
Output current base on 24VDC
2.5 A 5 A 10 A 20 A 5 A 10 A 20 A 40 A 0.65 A 1.3 A 2.5 A 5 A 10 A 20 A 10 A 20 A 40 A 1.3 A 2.5 A 5 A 10 A 20 A 0.7 A 1.1 A 1.5 A 2.2 A 3.2 A 4.5 A 6.5 A 8.8 A 14.6 A 2.5 A 3.75 A 5 A 10 A 20 A 0.65 A 1.5 A 2.2 A 4.5 A 6.5 A 14 A 27 A 85 A 10 A with 6 branches 20 A with 8 branches 2.5 A 3.8 A 5 A 7.5 A 10 A 20 A
Features
Show all (22)		 Capacitor back-up Overvoltage protection Overload protection DIN-rail mounting Screw mounting (with bracket) N+1 Redundancy EN61000-3-2 Capacitor back-up Overvoltage protection Overload protection DIN-rail mounting Screw mounting (with bracket) EMI Class B N+1 Redundancy Parallel operation by 2 units Power boost 120% EN61000-3-2 Capacitor back-up Overvoltage protection Overload protection DIN-rail mounting Screw mounting (with bracket) EMI Class B UL Class 2 (up to 60 W) N+1 Redundancy Parallel operation by 2 units Power boost 120% EN61000-3-2 Capacitor back-up Overvoltage protection Overload protection DIN-rail mounting EMI Class B Power boost 150% (5 V of 50 W, 12 V) Power boost 150% (240 and 480W models) LED and signal output indicator EN61000-3-2 Capacitor back-up Undervoltage alarm (240 and 480W models) Overvoltage protection Overload protection DIN-rail mounting EMI Class B UL Class 2 (up to 60 W) N+1 Redundancy Parallel operation by 2 units Power boost 120% (30, 60 and 120W models) Power boost 150% (240 and 480W models) EN61000-3-2 (up to 150 W) Overvoltage protection Overload protection DIN-rail mounting Screw mounting (with bracket) EMI Class B (up to 150 W) EN61000-3-2 Capacitor back-up Undervoltage alarm Overvoltage protection Overload protection DIN-rail mounting EMI Class B UL Class 2 (up to 90 W) N+1 Redundancy Parallel operation by 2 units Power boost 120% (30, 60 and 120W models) Power boost 150% (240 and 480W models) Indication monitor (7 - segment LED) Network (Ethernet/IP , Modbus TCP) Replacement Time Calculation Function Display of output voltage/current/peak hold current Display of total run time Self-diagnostics function EN61000-3-2 Overvoltage protection Overload protection DIN-rail mounting Screw mounting (with bracket) EMI Class B Parallel operation by 5 units (600 W / 24VDC) EN61000-3-2 Capacitor back-up Overvoltage protection Overload protection DIN-rail mounting EMI Class B Power boost 150% LED and signal output indicator EN61000-3-2 Undervoltage alarm Overvoltage protection Display of output value Maintenance forecast Runtime monitor EN61000-3-2 Undervoltage alarm Overvoltage protection Display of output value Maintenance forecast Runtime monitor
Accessories
S8VK-R S8T-DCBU-02 S8M S8V-NF S8VK-R S8T-DCBU-02 S8M S8VK-R S8T-DCBU-02 S8M S8V-NF S8VK-R S8T-DCBU-02 S8V-CP S8VK-R S8T-DCBU-02 S8M S8V-NF S8VK-R S8T-DCBU-02 S8M S8V-NF - S8VK-R S8T-DCBU-02 S8M S8V-NF S8V-CP S8VK-R S8T-DCBU-02 S8V-NF S8VK-R S8T-DCBU-02 S8M S8V-NF
Product
S8VK-C S8VK-T S8VK-G S8VK-WB S8VK-S S8FS-C S8VK-X S8FS-G S8VK-WA S8AS S8VS-A/B
  • s8vk-c prod

    S8VK-C

    The cost effective book type power supply

  • s8vk-t prod

    S8VK-T

    Compact 3-phase input power supply

  • s8vk-g12024 prod

    S8VK-G

    The right power supply for your application

  • s8vk w main product image prod

    S8VK-WB

    Compact 3-phase 400 V Power Supply

  • s8vk s group image 400x400 prod

    S8VK-S

    Switch mode power supply

  • s8fs-c035 prod

    S8FS-C

    High reliability at a reasonable price

  • s8vk-x group prod

    S8VK-X

    Switch Mode Power Supply S8VK-X

  • s8fs-g prod

    S8FS-G

    Superior basic performance that ensures reliability. Wide range of standards certification and greater usability.

  • s8vk-wa20224-spi web prod

    S8VK-WA

    1- phase power supply with high performance

  • s8as 240w prod

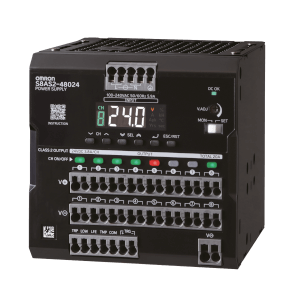

    S8AS

    Power Supply with the circuit protector function

  • s8vs-24024a prod

    S8VS-A/B

    Power Supply with a display
