Ready-to-use safety solution
E - Stop + G9SE + Safety actuator
Our safety solution is pre-installed and can be used immediately. A combination of emergency-stop push button or rope pull switch, a G9SE safety relay unit and a safety actuator.

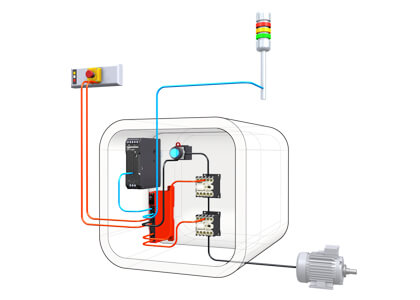

How does the safety solution work?
Our safety solution is based on INPUT - LOGIC - OUTPUT
- E-Stop acquires the information (INPUT)
- Safety relay units monitor and process the signal (LOGIC)
- Safety actuator stops the machine if a suspected situation is detected (OUTPUT)

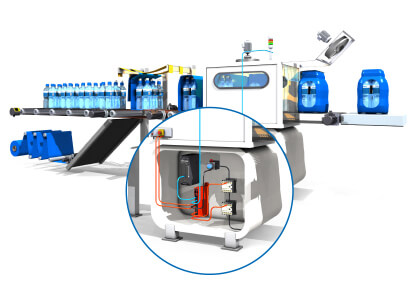

How does the safety solution work?
Benefits
- Comply with ISO 13850 standards
- Reduced BOM (Bill of material) and increased profitability
- Reduce machine’s time to market
- LED indicators provide faster diagnosis
- Solution which can be tailor made
- Up to 4 safety outputs in the 22.5 mm slim unit
- Response time of 15 MS max
Typical applications
- Machine tools
- Material handling and logistics
- Packaging (tcm:478-48890)
- Food and beverage
- Automotive
The package
| Reference | Description | Type |
|---|---|---|
| A22E- E-Stop pushbutton switch. 30mm to 60mm | Emergency stop (One to be selected) | INPUT |
| A165E- Emergency stop switch. 30mm | ||
| ER5018- Compact rope pull emergency stop switch | ||
| G9SE201DC24 | Safety relay unit (One to be selected) | LOGIC |
| G9SE401DC24 | ||
| G9SE221T05DC2 | ||
| J7KNA-09-01 - Motor contactor | Safety actuators (One to be selected) | OUTPUT |
| MX2 - Frequency inverter | ||
| Accurax G5 - Servo system | ||
| S8VK | Compact power supply,60 W,24 VDC | Non- Safety product |
| A22N | Reset function,22m pushbutton switch | Non- Safety product |
Products
-
Emergency stop switch
-
Emergency stop switch
-
At the heart of every great machine
-
Slim-size safety relay unit family
-
Motor contactors from 4-5.5kW for normal duty switching
-
Born to Drive Machines
-
The right power supply for your application
-
Compact 3-phase input power supply
