Faster* and simpler control

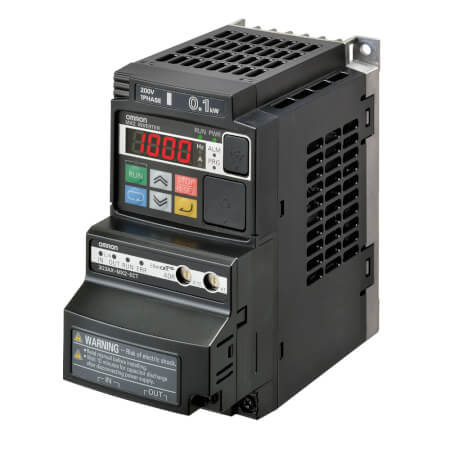

MX2 Inverter with EtherCAT in one package

We now offer our highly popular MX2 inverter with EtherCAT in one package.

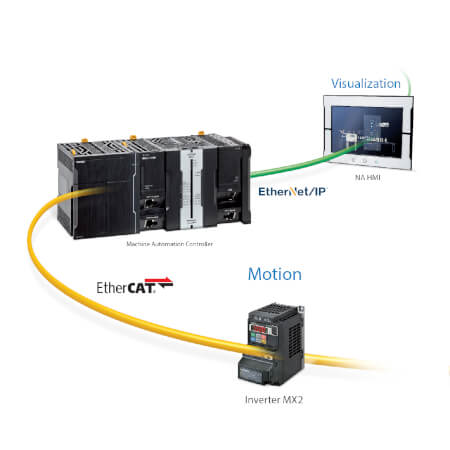

A single connection provides for realtime network connectivity giving optimised machine control & performance.

Improved functionality & maintenance capabilities are possible with access to device settings from the SYSMAC Machine Controller/HMI simplifying both commissioning and overall system costs.

* Up to 100 times faster than Modbus

Benefits

  • One machine network simplifies architecture and reduces wiring with distributed I/Os
  • Optimized machine commissioning and maintenance thought access to full MX2 data via a single connection
  • Support up to 512 MX2’s with a single EtherCAT cycle (1 ms)
  • Up to 100 times faster than MODBUS & up to 10 times faster than conventional networks
  • Speed control and indexer functions
  • Easy installation using standard STP Ethernet cable with RJ45 connectors

The range

Product ReferenceDescription
200V 1ph3G3MX2-AB001-EECTMX inverter drive, 0.1/0.2 kW (HD/ND) 1ph 200 VAC + EtherCAT Coupler
3G3MX2-AB002-EECTMX inverter drive, 0.2/0.4 kW (HD/ND) 1ph 200 VAC + EtherCAT Coupler
3G3MX2-AB004-EECTMX inverter drive, 0.4/0.55 kW (HD/ND) 1ph 200 VAC + EtherCAT Coupler
3G3MX2-AB007-EECTMX inverter drive, 0.75/1.1 kW (HD/ND) 1ph 200 VAC + EtherCAT Coupler
3G3MX2-AB015-EECTMX inverter drive, 1.5/2.2 kW (HD/ND) 1ph 200 VAC + EtherCAT Coupler
3G3MX2-AB022-EECTMX inverter drive, 2.2/3.0 kW (HD/ND) 1ph 200 VAC + EtherCAT Coupler

Product ReferenceDescription
400V 3ph3G3MX2-A4004-EECTMX inverter drive, 0.4/0.75 kW (HD/ND) 3ph 400 VAC + EtherCAT Coupler
3G3MX2-A4007-EECTMX inverter drive, 0.75/1.5 kW (HD/ND) 3ph 400 VAC + EtherCAT Coupler
3G3MX2-A4015-EECTMX inverter drive, 1.5/2.2 kW (HD/ND) 3ph 400 VAC + EtherCAT Coupler
3G3MX2-A4022-EECTMX inverter drive, 2.2/3.0 kW (HD/ND) 3ph 400 VAC + EtherCAT Coupler
3G3MX2-A4030-EECTMX inverter drive, 3.0/4.0 kW (HD/ND) 3ph 400 VAC + EtherCAT Coupler
3G3MX2-A4040-EECTMX inverter drive, 4.0/5.5 kW (HD/ND) 3ph 400 VAC + EtherCAT Coupler

How much does the package cost?
