F3SG-RE
- CAD Library
- F3SG-R Series Safety Light Curtain Datasheet
Thank you for downloading the F3SG-R Series Safety Light Curtain Datasheet
Download againDid you know that 4 out of 5 distributors buy this product in a bundle?
There are many variations of passages of Lorem Ipsum available, but the majority have suffered alteration in some form, by injected humour, or randomised words which don't look even slightly believable.
Read more
Easy type for simple ON/OFF detection applications
The F3SG-RE easy safety light curtain provides simplicity in mounting, operation and maintenance.
- Torsion-resistant for fast and simple alignment
- Smart-click cable connection for fast set-up and correct torque to ensure IP67
- QR code indication for easy online troubleshooting
Online Trouble Shooting
8 Languages!
To access troubleshooting support for safety light curtain errors in your local language use your tablet or smartphone to scan a QR code sticker that can be applied to the machine. Also accessible by computer, operators can check the error details in 8 languages and download manuals from a dedicated website. Languages include English, Spanish, French, Chinese, Korean, Japanese, German and Italian.
Reduced Wiring Work

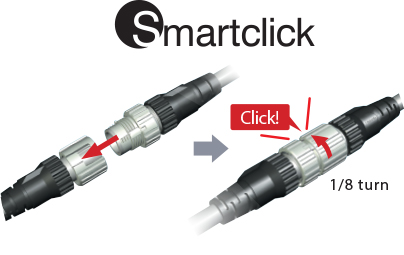

Smark Click
1/8 turn quick-connect M12 cables allow fast installation and proper torque to ensure IP67 connection.
| Product | Type of safety acc. IEC 61496-1 | Type of sensor | Detection capability | Safety field height | Beam gap | Number of beams | Number of protected semiconductor outputs | Number of semiconductor outputs with signalling function | Maximum safety range | Minimum operating distance | Time of reaction | Cascadable | With muting function | With beam coding | Type of switching output of the OSSD | Special function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | Finger detection | 14 mm | 160 mm | 10 mm | 15 | 2 | 0 | 10 m | 0.3 m | 5 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Hand detection | 30 mm | 190 mm | 20 mm | 8 | 2 | 0 | 20 m | 0.3 m | 5 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Hand detection | 30 mm | 270 mm | 20 mm | 12 | 2 | 0 | 20 m | 0.3 m | 5 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Finger detection | 14 mm | 320 mm | 10 mm | 31 | 2 | 0 | 10 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Hand detection | 30 mm | 350 mm | 20 mm | 16 | 2 | 0 | 20 m | 0.3 m | 5 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Finger detection | 14 mm | 400 mm | 10 mm | 39 | 2 | 0 | 10 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Hand detection | 30 mm | 430 mm | 20 mm | 20 | 2 | 0 | 20 m | 0.3 m | 5 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Finger detection | 14 mm | 480 mm | 10 mm | 47 | 2 | 0 | 10 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Hand detection | 30 mm | 510 mm | 20 mm | 24 | 2 | 0 | 20 m | 0.3 m | 5 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Finger detection | 14 mm | 560 mm | 10 mm | 55 | 2 | 0 | 10 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Hand detection | 30 mm | 590 mm | 20 mm | 28 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Hand detection | 30 mm | 670 mm | 20 mm | 32 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Finger detection | 14 mm | 720 mm | 10 mm | 71 | 2 | 0 | 10 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Hand detection | 30 mm | 750 mm | 20 mm | 36 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Finger detection | 14 mm | 800 mm | 10 mm | 79 | 2 | 0 | 10 m | 0.3 m | 9 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Hand detection | 30 mm | 830 mm | 20 mm | 40 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Hand detection | 30 mm | 910 mm | 20 mm | 44 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Hand detection | 30 mm | 990 mm | 20 mm | 48 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Hand detection | 30 mm | 1070 mm | 20 mm | 52 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Hand detection | 30 mm | 1150 mm | 20 mm | 56 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Hand detection | 30 mm | 1230 mm | 20 mm | 60 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 2 | Hand detection | 30 mm | 1550 mm | 20 mm | 76 | 2 | 0 | 20 m | 0.3 m | 9 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Finger detection | 14 mm | 160 mm | 10 mm | 15 | 2 | 0 | 10 m | 0.3 m | 5 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 190 mm | 20 mm | 8 | 2 | 0 | 20 m | 0.3 m | 5 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Finger detection | 14 mm | 240 mm | 10 mm | 23 | 2 | 0 | 10 m | 0.3 m | 5 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 270 mm | 20 mm | 12 | 2 | 0 | 20 m | 0.3 m | 5 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Finger detection | 14 mm | 320 mm | 10 mm | 31 | 2 | 0 | 10 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 350 mm | 20 mm | 16 | 2 | 0 | 20 m | 0.3 m | 5 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Finger detection | 14 mm | 400 mm | 10 mm | 39 | 2 | 0 | 10 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 430 mm | 20 mm | 20 | 2 | 0 | 20 m | 0.3 m | 5 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Finger detection | 14 mm | 480 mm | 10 mm | 47 | 2 | 0 | 10 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 510 mm | 20 mm | 24 | 2 | 0 | 20 m | 0.3 m | 5 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Finger detection | 14 mm | 560 mm | 10 mm | 55 | 2 | 0 | 10 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 590 mm | 20 mm | 28 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Finger detection | 14 mm | 640 mm | 10 mm | 62 | 2 | 0 | 10 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 670 mm | 20 mm | 32 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Finger detection | 14 mm | 720 mm | 10 mm | 71 | 2 | 0 | 10 m | 0.3 m | 9 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 750 mm | 20 mm | 36 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Finger detection | 14 mm | 800 mm | 10 mm | 79 | 2 | 0 | 10 m | 0.3 m | 9 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 830 mm | 20 mm | 40 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Finger detection | 14 mm | 880 mm | 10 mm | 87 | 2 | 0 | 10 m | 0.3 m | 9 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 910 mm | 20 mm | 44 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Finger detection | 14 mm | 960 mm | 10 mm | 95 | 2 | 0 | 10 m | 0.3 m | 9 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 990 mm | 20 mm | 48 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Finger detection | 14 mm | 1040 mm | 10 mm | 103 | 2 | 0 | 10 m | 0.3 m | 9 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 1070 mm | 20 mm | 52 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Finger detection | 14 mm | 1120 mm | 10 mm | 111 | 2 | 0 | 10 m | 0.3 m | 11 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Finger detection | 14 mm | 1200 mm | 10 mm | 119 | 2 | 0 | 10 m | 0.3 m | 11 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 1230 mm | 20 mm | 60 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 1310 mm | 20 mm | 64 | 2 | 0 | 20 m | 0.3 m | 7 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Finger detection | 14 mm | 1360 mm | 10 mm | 135 | 2 | 0 | 10 m | 0.3 m | 11 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 1470 mm | 20 mm | 72 | 2 | 0 | 20 m | 0.3 m | 9 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Finger detection | 14 mm | 1520 mm | 10 mm | 151 | 2 | 0 | 10 m | 0.3 m | 13 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 1550 mm | 20 mm | 76 | 2 | 0 | 20 m | 0.3 m | 9 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 1630 mm | 20 mm | 80 | 2 | 0 | 20 m | 0.3 m | 9 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 1710 mm | 20 mm | 84 | 2 | 0 | 20 m | 0.3 m | 9 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 1790 mm | 20 mm | 88 | 2 | 0 | 20 m | 0.3 m | 9 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring | |
| 4 | Hand detection | 30 mm | 1950 mm | 20 mm | 96 | 2 | 0 | 20 m | 0.3 m | 9 ms | FALSE | FALSE | FALSE | PNP | Fast response (ON/OFF applications), Simple wiring |
