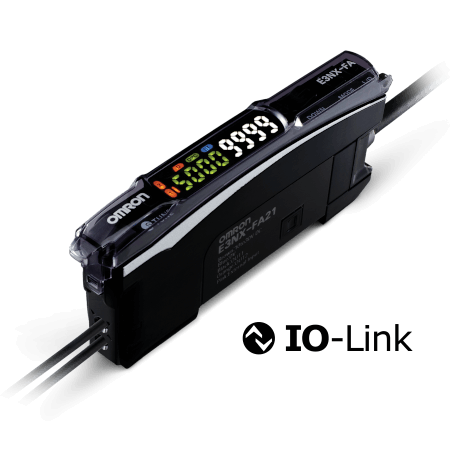

E3NX-FA
High-performance digital fiber amplifier
The E3NX-FA amplifier is best choice for most challenging fiber applications in terms of long sensing distance, minute object detection or high speed processes.

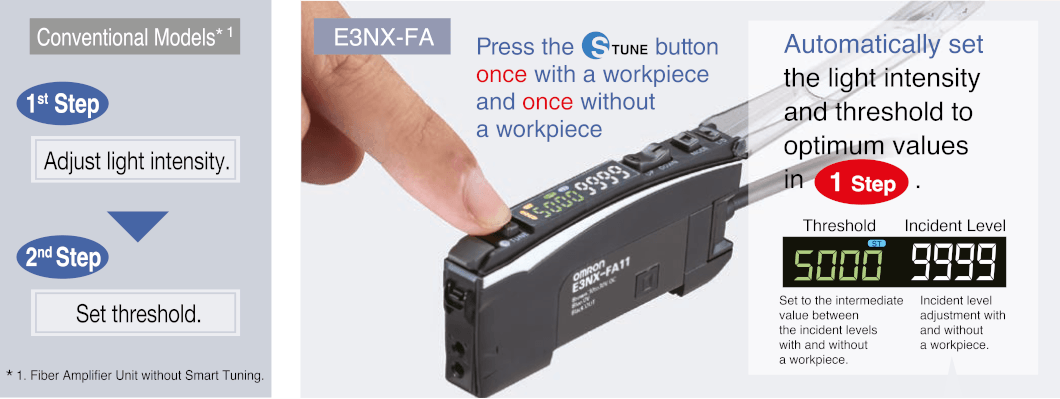

- Easy teaching by Smart tuning within a few seconds
- New N-Smart technology provides significant improvement for sensing distance, minimum object detection and speed

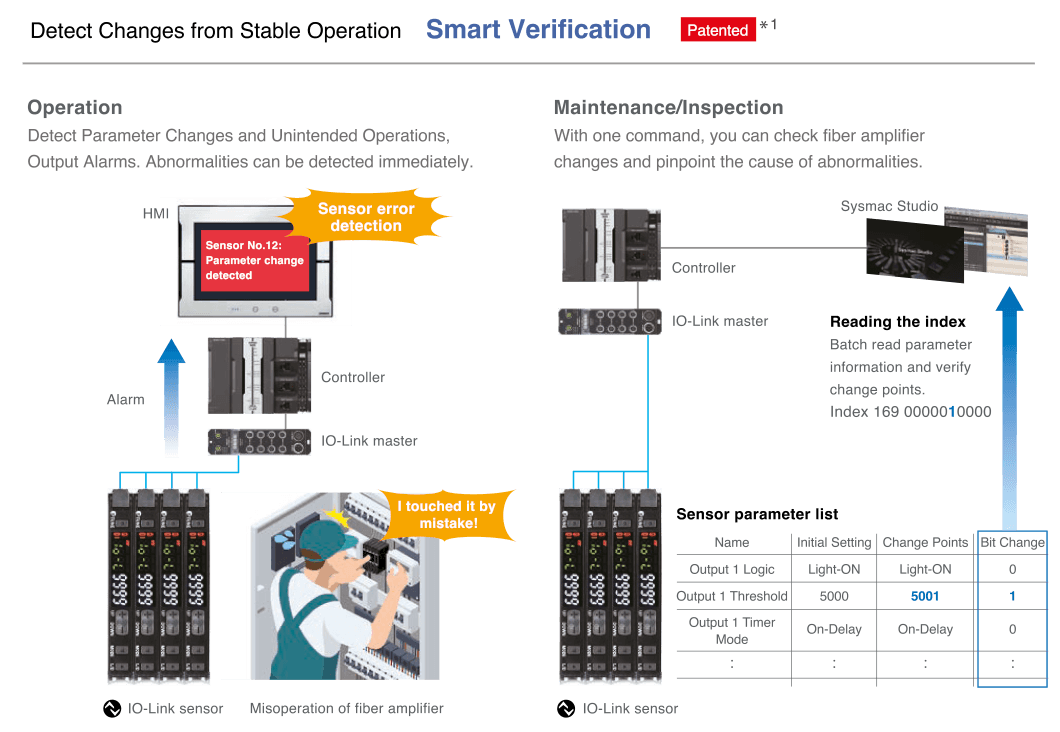

- Easy and transparent information about sensor status by Solution Viewer and Change Finder function
- EtherCAT Communication unit for high-speed field bus connectivity
Specifications & ordering info
| Product | Shape | Sensing method | Setting method | Connection method | Cable length | Output type | Operation mode | Response time | Material housing | Type of light | Functions | Features | Application | Number of numerical displays | Number of channels | Degree of protection (IP) | Number of digital outputs | Number of analog outputs | Number of digital inputs | Description | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | System connector | Other | Dark-ON, Light-ON | 0.032 ms | Polycarbonate | Polarity free red light | Self-diagnosis, Timer | Bank function, Use with communication unit | Object detection | 2 | 1 | IP50 | 0 | 0 | 0 | Fiber amplifier, red LED, twin digital display, smart tuning, Fieldbus communication |
|
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | Cable | 2 m | NPN | Dark-ON, Light-ON | 0.03 ms | Polycarbonate | Polarity free red light | Timer | Bank function | Object detection | 2 | 1 | IP50 | 1 | 0 | 0 | Fiber amplifier, twin digital display, smart tuning, NPN, single output, 2m cable |
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | Cable | 2 m | Analog, NPN | Dark-ON, Light-ON | 0.08 ms | Polycarbonate | Polarity free red light | Timer | Analog output, Bank function | Object detection | 2 | 1 | IP50 | 1 | 1 | 0 | Fiber amplifier, red LED, twin digital display, smart tuning, analog output, NPN output, 2 m cable |
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | Cable | 2 m | NPN | Dark-ON, Light-ON | 0.032 ms | Polycarbonate | Polarity free red light | Self-diagnosis, Timer | Bank function, External input, Twin outputs | Object detection | 2 | 1 | IP50 | 2 | 0 | 1 | Fiber amplifier, twin digital display, smart tuning, NPN, double output, external input, 2m cable |
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | Connector M8 - 4 pin | NPN | Dark-ON, Light-ON | 0.03 ms | Polycarbonate | Polarity free red light | Timer | Bank function, External input | Object detection | 2 | 1 | IP50 | 1 | 0 | 1 | Fiber amplifier, twin digital display, smart tuning, NPN, single output, external input, M8 connector |
|
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | Cable | 2 m | PNP | Dark-ON, Light-ON | 0.03 ms | Polycarbonate | Polarity free red light | Timer | Bank function | Object detection | 2 | 1 | IP50 | 1 | 0 | 0 | Fiber amplifier, twin digital display, smart tuning, PNP, single output, 2 m cable |
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | Cable | 2 m | Analog, PNP | Dark-ON, Light-ON | 0.08 ms | Polycarbonate | Polarity free red light | Timer | Analog output, Bank function | Object detection | 2 | 1 | IP50 | 1 | 1 | 0 | Fiber amplifier, red LED, twin digital display, smart tuning, analog output, PNP output, 2 m cable |
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | Cable | 2 m | PNP | Dark-ON, Light-ON | 0.032 ms | Polycarbonate | Polarity free red light | Self-diagnosis, Timer | Bank function, External input, Twin outputs | Object detection | 2 | 1 | IP50 | 2 | 0 | 1 | Fiber amplifier, twin digital display, smart tuning, PNP, double output, external input, 2 m cable |
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | Connector M8 - 4 pin | PNP | Dark-ON, Light-ON | 0.03 ms | Polycarbonate | Polarity free red light | Timer | Bank function, External input | Object detection | 2 | 1 | IP50 | 1 | 0 | 1 | Fiber amplifier, twin digital display, smart tuning, PNP, single output, external input, M8 connector |
|
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | Connector M8 - 4 pin | PNP | Dark-ON, Light-ON | 0.032 ms | Polycarbonate | Polarity free red light | Self-diagnosis, Timer | Bank function, Twin outputs | Object detection | 2 | 1 | IP50 | 2 | 0 | 0 | Fiber amplifier, twin digital display, smart tuning, PNP, double output, M8 connector |
|
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | System connector | NPN | Dark-ON, Light-ON | 0.03 ms | Polycarbonate | Polarity free red light | Timer | Bank function | Object detection | 2 | 1 | IP50 | 1 | 0 | 0 | Fiber amplifier, twin digital display, smart tuning, NPN, single output, system connector |
|
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | System connector | NPN | Dark-ON, Light-ON | 0.03 ms | Polycarbonate | Polarity free red light | Timer | Bank function, External input | Object detection | 2 | 1 | IP50 | 1 | 0 | 1 | Fiber amplifier, twin digital display, smart tuning, NPN, single output, external input, system connector |
|
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | System connector | NPN | Dark-ON, Light-ON | 0.032 ms | Polycarbonate | Polarity free red light | Self-diagnosis, Timer | Bank function, Twin outputs | Object detection | 2 | 1 | IP50 | 2 | 0 | 0 | Fiber amplifier, twin digital display, smart tuning, NPN, double output, system connector |
|
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | System connector | PNP | Dark-ON, Light-ON | 0.03 ms | Polycarbonate | Polarity free red light | Timer | Bank function | Object detection | 2 | 1 | IP50 | 1 | 0 | 0 | Fiber amplifier, twin digital display, smart tuning, PNP, single output, system connector |
|
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | System connector | PNP | Dark-ON, Light-ON | 0.03 ms | Polycarbonate | Polarity free red light | Timer | Bank function, External input | Object detection | 2 | 1 | IP50 | 1 | 0 | 1 | Fiber amplifier, twin digital display, smart tuning, PNP, single output, external input, system connector |
|
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | System connector | PNP | Dark-ON, Light-ON | 0.032 ms | Polycarbonate | Polarity free red light | Self-diagnosis, Timer | Bank function, Twin outputs | Object detection | 2 | 1 | IP50 | 2 | 0 | 0 | Fiber amplifier, twin digital display, smart tuning, PNP, double output, system connector |
|
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | System connector | Other | Dark-ON, Light-ON | 0.032 ms | Polycarbonate | Infrared light | Self-diagnosis, Timer | Bank function, Use with communication unit | Object detection | 2 | 1 | IP50 | 0 | 0 | 0 | Fiber amplifier, infrared LED, twin digital display, smart tuning, Fieldbus communication |
|
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | Cable | 2 m | NPN | Dark-ON, Light-ON | 0.03 ms | Polycarbonate | Infrared light | Timer | Bank function | Object detection | 2 | 1 | IP50 | 1 | 0 | 0 | Fiber amplifier, infrared LED, twin digital display, smart tuning, NPN, single output, 2 m cable |
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | Cable | 2 m | PNP | Dark-ON, Light-ON | 0.03 ms | Polycarbonate | Infrared light | Timer | Bank function | Object detection | 2 | 1 | IP50 | 1 | 0 | 0 | Fiber amplifier, infrared LED, twin digital display, smart tuning, PNP, single output, 2 m cable |
|
|
|
Cuboid, rail mounting | Amplifier | Teach-In | System connector | NPN | Dark-ON, Light-ON | 0.03 ms | Polycarbonate | Infrared light | Timer | Bank function | Object detection | 2 | 1 | IP50 | 1 | 0 | 0 | Fiber amplifier, infrared LED, twin digital display, smart tuning, NPN, single output, system connector |
|
No results found. Please expand your filter selection.
Reset all filters
How can we help you?
If you have a question or would like to ask for a quote, please contact us or send a request.
+44 (0)870 752 0861
Contact us
Contact me E3NX-FA
Thank you for submitting your request. We will come back to you as soon as possible.
We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]
Download+44 (0)870 752 0861
+44 (0)870 752 0861
Request quotation
Request quotation
Quotation for E3NX-FA
By completing this form you can request a quotation. Your personal details will be handled confidentially.
Thank you for requesting a quotation. We will provide you with the required information as soon as possible.
We are experiencing technical difficulties. Your form submission has not been successful. Please accept our apologies and try again later. Details: [details]
DownloadRequest quotation
Request quotation
Features

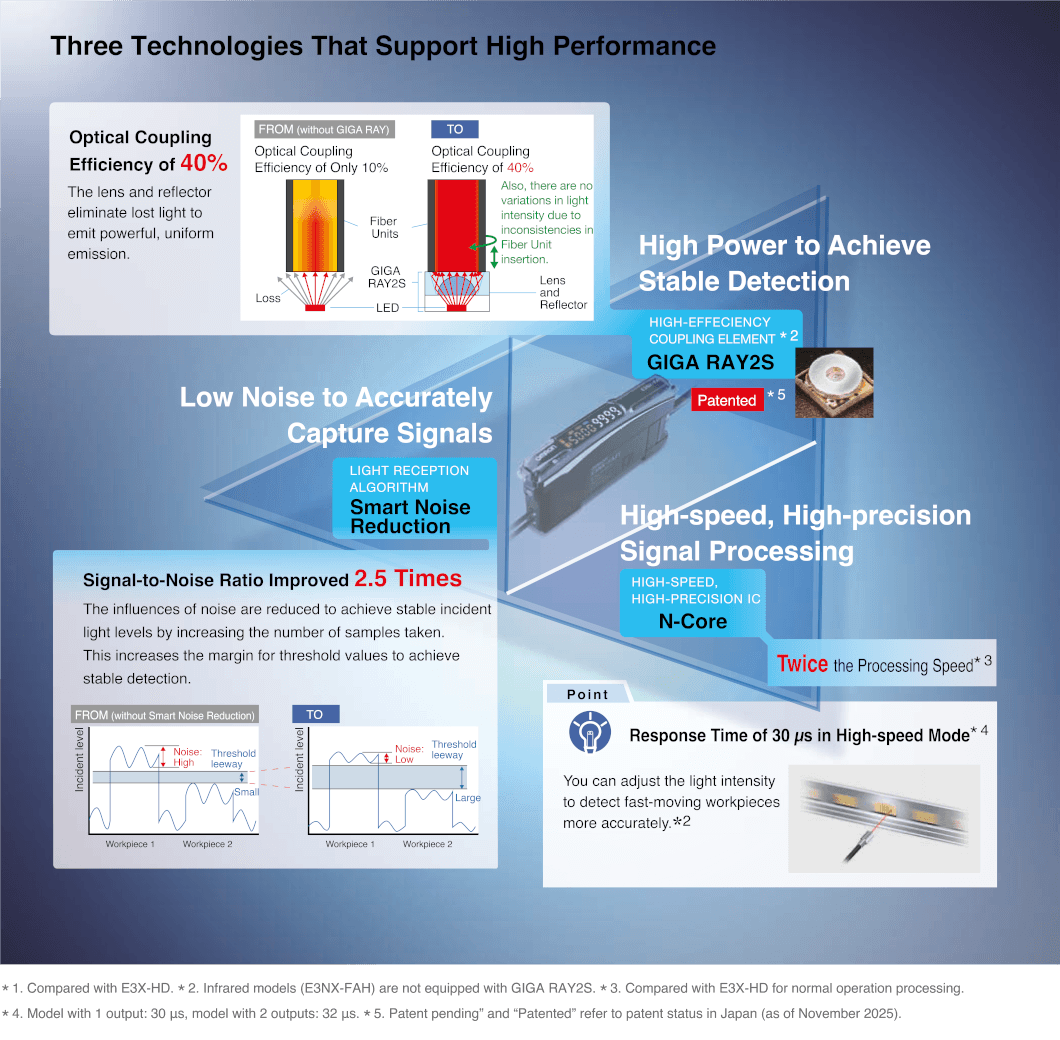

N-Smart technology
The GIGA RAY 2S high-efficiency coupling element achieves a clear signal and wide dynamic range. It is joined by the new “Smart Noise Reduction” light reception algorithm and the high-speed, high-precision “N-Core” IC.These three technologies improve the basic performance of E3NX-FA resulting in signal-to-noise ratio that is 2.5 times higher compared to conventional models.
Dynamic Power Control
Dynamic Power Control (DPC) automatically compensates differences in the incident level caused by dirt or vibration. In addition an alarm output signal is sent for predictive maintenance, if the sensor has reached compensation limit.
Timer functions
Adjust the output signal length and timing:
- T1 ON-delay set time
- T2 OFF-delay set time
- T1 and T2 can be set separately
